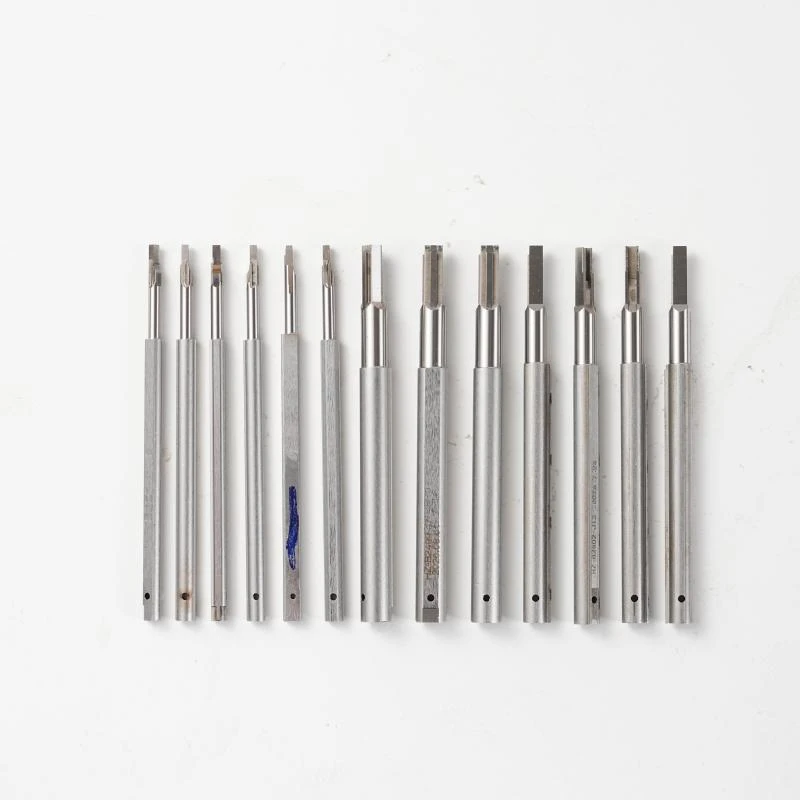

Automotive Connector Mold
In the automotive electronics sector, precise plastic injection and metal stamping molds are essential for high-integrity components. Precision connector tooling ensures structural stability, optimal terminal retention, and seamless signal transmission across modern vehicle systems.
Engineering & Application Focus
Engineered specifically for harsh automotive environments, this mold series supports multi-cavity production for high-density wiring systems. Common applications include:
Engine Control Units (ECUs): Molds optimized for high-temperature resistance and tight tolerance control.
Electric Vehicle (EV) Battery Management Systems: Custom tooling for high-voltage interconnects and battery pack interfaces.
Advanced Driver Assistance Systems (ADAS): Micro-pitch connector molds designed for sensor, radar, and camera module packaging.
In-Vehicle Infotainment & Sensors: Robust multi-pin connectors for reliable data routing under continuous vibration.
Technical Capabilities
|
Feature |
Specification / Capability |
|
Mold Steel Options |
ASSAB S136, SKD61, NAK80, Hardened H13 |
|
Tolerance Precision |
Down to $\pm0.002\text{ mm}$ for critical terminal positions |
|
Tooling Life |
500,000 to 1,000,000+ shots depending on material specs |
|
Compatible Resins |
PBT, PA66, LCP, PPS (Glass-fiber reinforced compliant) |
Frequently Asked Questions
Q: How o you maintain dimensional stability for micro-pitch connector molds?
A: We utilize slow-speed wire EDM, high-precision CNC machining, and specialized stress-relief heat treatments. Every core and cavity insert undergoes rigorous CMM inspection before final tool assembly.
Q: Can you accommodate high-temperature resins with glass-fiber additives?
A: Yes. We apply specialized anti-wear and anti-corrosion surface treatments (such as DLC or titanium plating) to mold inserts to withstand abrasive materials like LCP or PA66-GF30.
Q: What is the standard lead time from DFM analysis to T1 sample delivery?
A: Typically, T1 samples are delivered within 3 to 5 weeks following Design for Manufacturability (DFM) approval and mold flow simulation verification.
