High-Precision Computer Connector Mold Engineering & Custom Manufacturing
Precision tooling is the backbone of high-density hardware architecture. We specialize in the custom design and high-speed CNC machining of computer connector mold solutions tailored for high-frequency signal transmission, server backplanes, and micro-D subminiature components. Engineered to meet the stringent demands of global OEM/ODM electronics suppliers, our tooling guarantees repeatable dimensional stability across long production runs.
Technical Specifications & Manufacturing Capabilities
Pitch Precision: Micro-pitch capabilities down to 0.4mm with zero flash margin.
Tooling Tolerance: Ultra-tight dimensional control maintained within $\pm 0.001\text{ mm}$ via high-precision wire EDM and mirror polishing.
Core & Cavity Steel: Premium Swedish ASSAB (S136, 8407) and Japanese Daido (NAK80) hardened to HRC 52–58 for superior wear resistance.
Cavitation: Custom single to multi-cavity hot runner configurations optimized for minimal runner waste and faster cycle times.
Compatible Resins: Formulated specifically for high-temperature engineering plastics including LCP, PBT, PPS, and PA9T.
Why Global Electronics Manufacturers Partner With Us
Sub-Micron Machining Control: Our state-of-the-art Makino CNC and Sodick EDM units eliminate cavity variance, directly preventing pin misalignment and contact spring deformation.
Extended Tooling Service Life: Advanced surface coatings (TiN/DLC) dramatically reduce friction during demolding, extending active mold life beyond 1,000,000 shots.
Rapid DFM & Prototyping: Every inquiry includes a comprehensive Design for Manufacturability (DFM) flow analysis report within 24 hours to mitigate early warping risks.
one-stop solution
professional team
high quality
Frequently Asked Questions (FAQ)
Q: How do you ensure mold accuracy for ultra-fine pitch computer connectors?

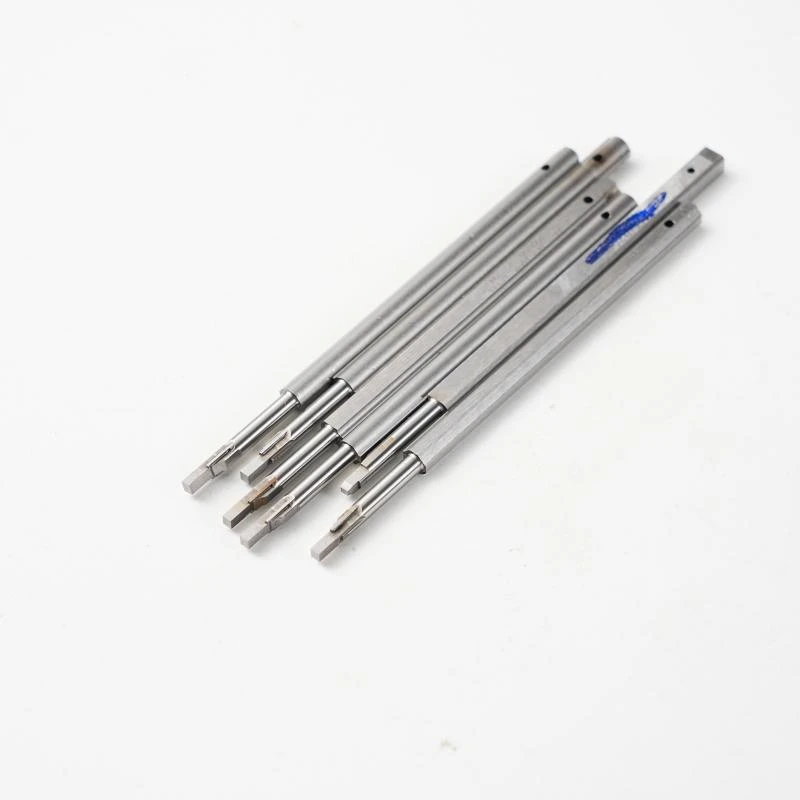

A: We perform full-dimension CMM inspection on all core insert pins and cavity inserts prior to T1 sampling, utilizing Zeiss optical measurement tools to guarantee sub-micron alignment.
Q: What is the typical lead time from design freeze to initial trial (T1)?
A: Standard custom tooling development generally requires 25 to 35 calendar days, inclusive of DFM validation and mold flow simulation.
Q: Do you offer export-ready mold bases compliant with international standards?
A: Yes, all tooling frameworks can be customized using HASCO, DME, or LKM standard components to ensure seamless maintenance at your overseas production facilities.
