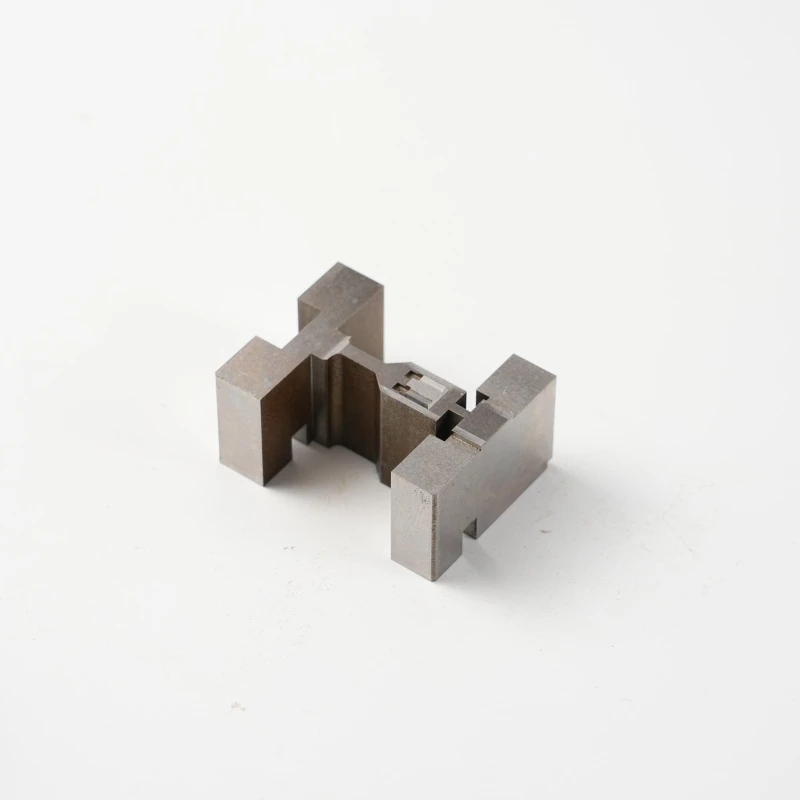

Precision-Engineered Tooling for Next-Generation Mobile Devices
As smartphones continue to push the boundaries of miniaturization, higher pin density, and high-speed data transmission, the molds that produce their internal connectors must evolve accordingly. Our mobile phone connector mold is precision-engineered to meet these exacting demands-delivering the micron-level accuracy, thermal stability, and production durability that modern electronics manufacturing requires.
Engineered for Micron-Level Precision
Today's mobile connectors routinely require tolerances of ±0.005mm to ±0.01mm on critical features such as contact pin pocket spacing and mating surfaces. With pin pitches shrinking to 0.3mm, 0.5mm, and 0.8mm, absolute precision is no longer optional-it is the difference between a reliable connection and a failed device. Our tooling is manufactured using high-precision CNC machining, wire EDM, and mirror electrical discharge machining, achieving cavity tolerances within ±0.005mm. This level of accuracy ensures that every molded connector housing maintains consistent dimensional integrity across millions of production cycles.
Material Compatibility for Demanding Applications
Mobile phone connectors operate in thermally and electrically demanding environments. Our molds are designed to process high-performance engineering resins including LCP (liquid crystal polymer), PPS (polyphenylene sulfide), and PBT-materials chosen for their low thermal expansion, high heat resistance (up to 240–280°C for LCP), and excellent flow characteristics for thin-wall precision molding. We incorporate shrinkage compensation into cavity steel dimensions during the design phase, ensuring that finished parts meet specifications consistently regardless of material batch variation.
End-to-End Manufacturing Capability
From design and 3D flow simulation to CNC machining, EDM, assembly, and injection molding trials, we manage the entire mold lifecycle in-house. This integrated approach allows us to identify and eliminate potential defects-short shots, flash, sink marks, or warpage-before production begins. The result is a mold that delivers first-pass quality and reliable, repeatable performance from the very first shot.
Built for High-Volume Production Stability
A connector mold is not just about achieving precision once-it must maintain that precision over millions of shots. We construct our molds using premium tool steels such as VKING and SKD61, heat-treated to 52–58 HRC for wear resistance and thermal stability. Multi-cavity configurations (8-cavity, 16-cavity, and beyond) enable monthly production volumes of 2 million units and higher, with each cavity maintaining consistent output. Our preventive maintenance protocols and digital mold-management systems monitor wear in critical mechanisms to prevent unplanned downtime.
one-stop solution
professional team
high quality
Why Choose Our Mobile Phone Connector Mold?
Micron-level precision
– ±0.005mm tolerance capability
01
High-performance material compatibility
– LCP, PPS, PBT, and more
02
Proven high-volume durability
– 1M+ shots without quality degradation
03
Full in-house manufacturing
– Design, machining, assembly, and testing
04
Customizable configurations
– Multi-cavity, insert molding, and application-specific designs
05
FAQ
Q: What tolerance levels can your mobile phone connector mold achieve?
A: We maintain cavity tolerances within ±0.005mm on critical features, ensuring consistent pin pocket spacing and mating surface accuracy across all cavities.
Q: Which materials are compatible with your molds?
A: Our tooling is designed for high-performance engineering plastics including LCP, PPS, PBT, PA9T, and PEEK-materials commonly specified for mobile device connectors.
Q: What is the typical lead time for a custom connector mold?
A: Standard lead times range from 4 to 8 weeks depending on complexity and cavity count. We offer accelerated timelines for urgent programs.
Q: Can you support high-volume production with multi-cavity molds?
A: Yes. We design and build 8-cavity, 16-cavity, and custom multi-cavity configurations capable of sustained monthly production volumes exceeding 2 million units.
Q: Do you offer mold maintenance and support after delivery?
A: Absolutely. We provide comprehensive after-sales support including preventive maintenance guidance, spare parts, and technical troubleshooting to ensure long-term production stability.
Q: What quality certifications do you hold?
A: Our facility operates under ISO9001 quality management systems, with rigorous in-process inspection and 100% dimensional verification protocols.
