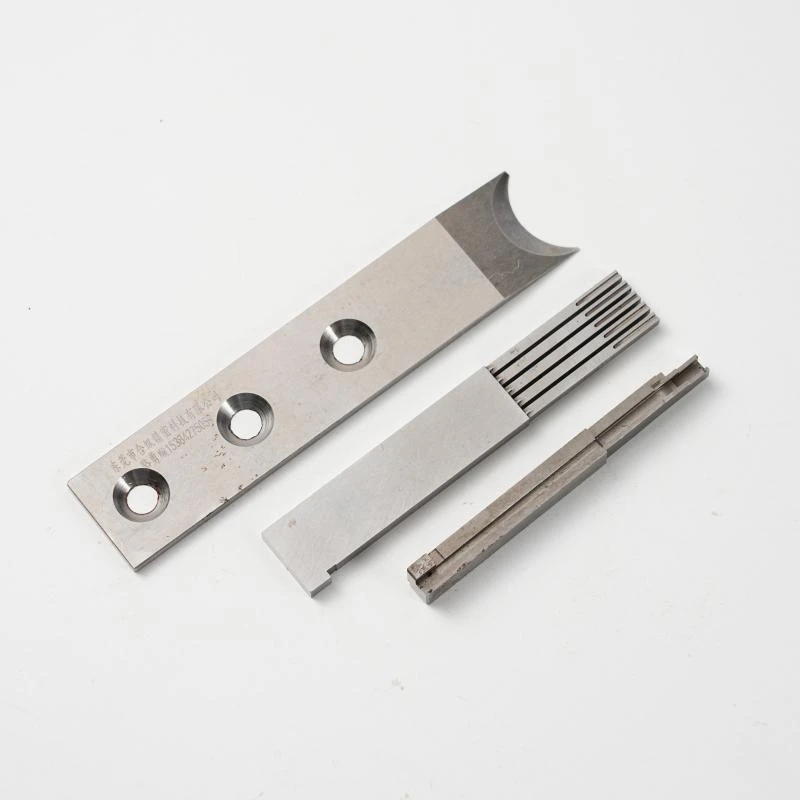

Precision Automotive Stamping Dies – Engineered for Next-Gen Vehicle Structures
In the era of lightweight electric vehicles and advanced high-strength steel (AHSS) applications, the quality of your tooling directly determines crash safety, dimensional stability, and production uptime. Our custom-engineered automotive stamping dies are not merely machined blocks of steel-they are the culmination of advanced simulation, multi-axis precision manufacturing, and rigorous tryout validation, built specifically for high-volume automotive production lines.
The Engineering Journey – How Our Automotive Stamping Dies Are Made
Every project begins with deep CAE forming simulation to predict material flow, thinning ratios, and springback behavior-especially critical for AHSS and aluminum alloys. Following virtual validation, we move to high-speed 5-axis CNC roughing and finishing, achieving surface accuracies within ±0.005mm. The selected tool steels (SKD11, DC53, or tungsten-carbide inserts) undergo vacuum heat treatment to a consistent 58–62 HRC, followed by ultra-precision WEDM and EDM machining for intricate trimming and flanging contours. Finally, every set is assembled and tested on servo presses, with iterative adjustments made during the tryout phase to ensure first-run perfection. This meticulous lifecycle ensures that our automotive stamping dies deliver stable dimensional integrity over 1 million+ strokes, significantly lowering your per-part cost while reducing unplanned press downtime.
Key Strengths & Performance Advantages
Advanced Anti-Wear Technology – We apply TD coating and nitriding treatments to combat galling and burr accumulation, extending continuous stamping die life by over 35% compared to conventional surface hardening.
Intelligent Springback Compensation – Instead of costly post-machining adjustments, we embed geometric compensation directly into the cavity design, eliminating secondary restrike operations for AHSS components.
Turnkey Process Integration – We deliver complete process packages including draw bead design, strip layout, scrap chopping mechanisms, and automated part ejection systems-ready for your press line.
Multi-Material Compatibility – Our tooling seamlessly handles aluminum, stainless steel 304, galvanized sheets, and AHSS up to 1180MPa, ensuring versatility across door panels, chassis reinforcements, and structural battery enclosures.
Frequently Asked Questions
Q: What is the typical lead time for custom automotive stamping dies?
A: For medium-complexity single-operation dies, our standard lead time is 6–8 weeks. Our concurrent engineering approach allows us to overlap design, material procurement, and CNC programming, compressing tryout timelines by up to 20%.
Q: Do you offer die maintenance and refurbishment services?
A: Absolutely. We provide full lifecycle support, including wear-part replacement, re-polishing, and recoating services to restore original tolerance and maximize total tool life-often achieving 2–3 refurbishment cycles per die set.
Q: How do you guarantee quality for complex deep-drawn parts?
A: Beyond CMM inspections, we utilize ATOS 3D optical scanning for full-surface geometric comparison against the CAD master. Every tryout run is documented with CPk values exceeding 1.67, ensuring your production parts remain consistent across millions of strokes.
Q: Can you support both prototype soft tools and high-volume production hard dies?
A: Yes. We offer a flexible pathway-from low-cost prototype tooling for validation to durable production-grade hard dies with carbide inserts, allowing you to de-risk your project before committing to full-scale investment.
Partner with a Dedicated Stamping Expert
From concept simulation to press-floor delivery, we provide precision tooling that keeps your assembly lines running at peak efficiency. With complete in-house machining, heat treatment, and testing capabilities, we eliminate outsourcing delays and maintain absolute quality control at every stage.
Contact us today to discuss your next automotive stamping project-and let our engineering team turn your complex panel designs into reliable, high-speed production realities.
