Product Overview

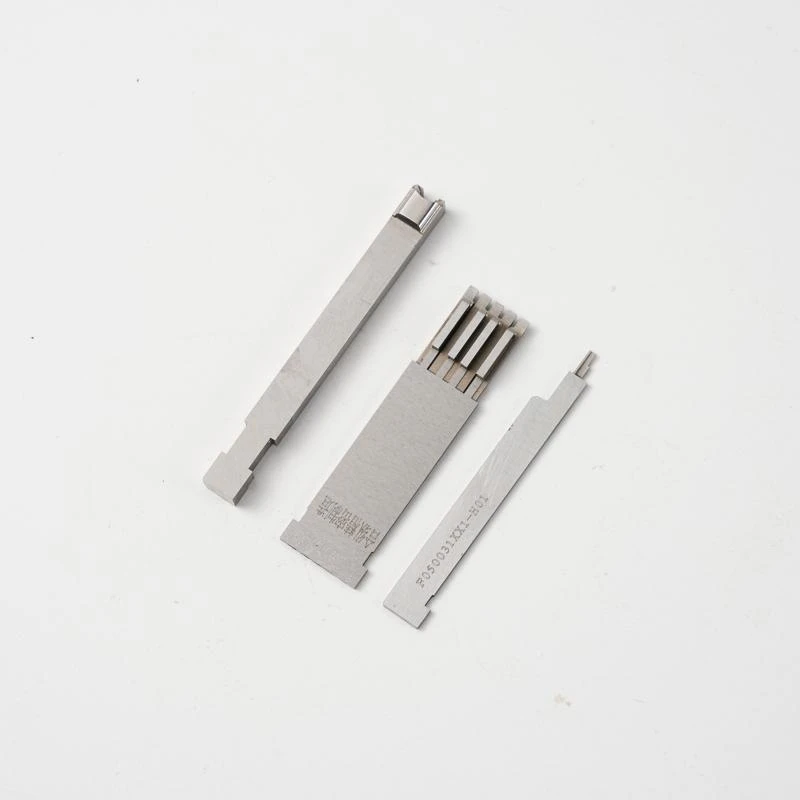

A stamping die is a specialized, one-of-a-kind precision tool that cuts and forms sheet metal into a desired shape or profile. Our stamping and cutting dies are precision-engineered tooling systems designed to perform blanking, piercing, trimming, and forming operations in a single press cycle or across progressive stations. Whether you require compound dies for multiple cuts in one stroke, progressive dies for high-speed automated production, or transfer dies for complex, deep-drawn components, our custom tooling solutions deliver consistent micron-level accuracy across millions of production strokes.
Manufactured from premium tool steel grades including SKD11, D2, DC53, and tungsten carbide for wear-critical applications, our dies achieve working hardness of HRC 55–64 through precision vacuum heat treatment and deep cryogenic tempering. Advanced CNC milling, slow-feeding wire EDM, and precision grinding ensure tolerances within ±0.002mm, with surface finishes reaching Ra ≤ 0.2μm.
Manufacturing & Quality Assurance
Every project begins with collaborative CAD engineering and sheet metal forming simulation to optimize strip layout, prevent wrinkling and tearing, and eliminate costly design iterations. Our in-house tryout presses perform comprehensive trial runs, and we deliver complete First Article Inspection Reports (FAIR), CMM dimensional verification, and video documentation of continuous stamping performance prior to shipment. ISO 9001:2015 certified manufacturing processes ensure full traceability from raw material mill certificates to final inspection.
Core Advantages
Production Efficiency: Progressive die configurations complete multiple operations-punching, bending, coining, and cutting-in a single press stroke, significantly reducing cycle times and labor costs.
Dimensional Consistency: Rigid die set construction eliminates deflection during high-tonnage strokes, ensuring every stamped part meets exact specifications from first piece to millionth piece.
Extended Tool Life: Premium steel selection combined with precision heat treatment delivers service life of hundreds of thousands to millions of strokes, minimizing downtime for maintenance and replacement.
Application Versatility: Compatible with materials ranging from soft copper and aluminum to DP980 advanced high-strength steel (AHSS), serving automotive, electronics, appliance, medical device, and industrial equipment sectors.
Frequently Asked Questions
Q: What tolerances can you hold on stamping die components?
A: We consistently maintain ±0.005mm tolerances on punches, dies, and inserts, with full CMM verification and dimensional reports shipped with every order.
Q: What steel grades do you recommend for my application?
A: Material selection depends on production volume, material type, and part complexity. We offer SKD11, D2, DC53, ASP-23, and tungsten carbide, with engineering support to guide your selection.
Q: How long does it take to build a custom stamping die?
A: Typical lead times range from 15–25 days after drawing confirmation for first trial, depending on complexity.
Q: What quality documentation do you provide?
A: We supply FAIR reports, CMM measurement data, material mill certificates, hardness certifications, and video documentation of trial runs.
Q: Do you offer design for manufacturability (DFM) support?
A: Yes. Our engineering team performs comprehensive DFM reviews and forming simulations before manufacturing begins, identifying potential issues before steel is cut.
Partner with a trusted stamping die manufacturer delivering precision tooling solutions built for global production standards. Contact us to discuss your project requirements.
